MECCANIXITY Miniature Current Switch 0-50A Normally Open AC Current Sensing Switch Sensor Monitoring Relay, M3060
Product details
| Management number | 229751381 | Release Date | 2026/05/31 | List Price | US$6.84 | Model Number | 229751381 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
What is this?The AC current sensing switch uses the principle of mutual induction to sense AC, isolate AC current, and output normally open or normally closed switch signals. Compared with traditional transformers, thermal protectors, etc., it can detect and control more accurately and timely.What will I get?Type: Normally Open (N.O.)Rated load: 0.3A@240V AC/DCMonitoring current: 0-50A ACTape phenomenon: <1%Response time: <200msWorking temperature: -20~55°CDimensions: 65x47x25mm/2.6x1.8x0.98 inchPackage contains: 1pcs x Current Monitoring Relays + 1pcs Screwdriver+ 2pcs ScrewsAre there any advantages of the product?LED indication: The action current is 0-30A AC, and the sensor switch is equipped with an LED indicator light, which can intuitively see the working status of the switchABS material: The sensor monitoring relay shell uses ABS fireproof material, which is heat-resistant, high in impact strength and stable in performance.High performance: The switch has no limit on the number of times it is opened and closed, and the response speed is extremely fast, with a response time of <200msHow to use it?Normally open type: When no current is sensed, the normally open contact is always in the disconnected state; when current is sensed, the normally open contact is always in the connected state.Normally closed type: When no current is sensed, the normally closed contact is always in the connected state; when current is sensed, the normally closed contact is always in the disconnected state.What should I notice?Please use the current sensing relay at the rated voltage and current, and do not exceed the rated current.
- The AC current sensing switch uses the principle of mutual induction to sense AC, isolate AC current, and output normally open or normally closed switch signals. Compared with traditional transformers, thermal protectors, etc., it can detect and control more accurately and timely.
- Current Monitoring Relays Type: Normally Open (N.O.); Rated load: 0.3A@240V AC/DC; Monitoring current: 0-50A AC; Response time: <200ms

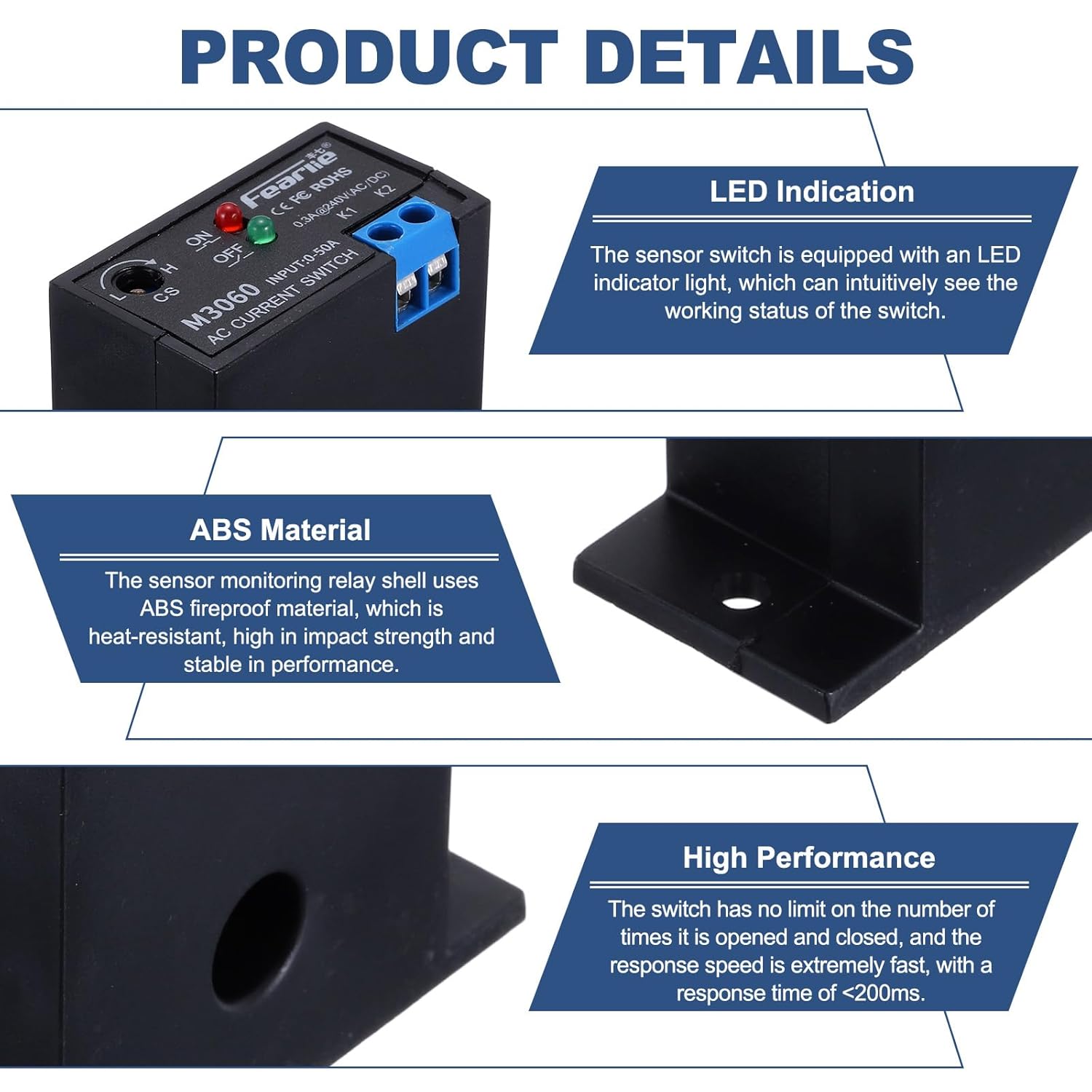

- LED indication: The action current is 0-30A AC, and the sensor switch is equipped with an LED indicator light, which can intuitively see the working status of the switch; ABS material: The sensor monitoring relay shell uses ABS fireproof material, which is heat-resistant, high in impact strength and stable in performance.
- High performance: The switch has no limit on the number of times it is opened and closed, and the response speed is extremely fast, with a response time of <200ms
- Please use the current sensing relay at the rated voltage and current, and do not exceed the rated current.(The product comes with instructions)
| ASIN | B0DTDGPBNW |
|---|---|
| Wattage | 72 watts |
| Terminal | Screw |
| Brand Name | MECCANIXITY |
| Unit Count | 1.0 Count |
| Part Number | mea241206ee000220 |
| Switch Type | Push Button, Normally Open/Normally Closed |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | MECCANIXITY |
| Mounting Type | Tabletop |
| Connector Type | Micro Usb |
| Control Method | Sensor |
| Current Rating | 50 Amps |
| Operation Mode | automatic |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 240 Volts (AC) |
| Number of Positions | 1 |
